350mm Passive ICF: Sunforest's Highest-Insulation Wall System for Extreme Climates

350mm Passive ICF: Sunforest's Highest-Insulation Wall System for Extreme Climates

Hangzhou Sunforest Constech Co., Ltd manufactures a 350mm passive/ultra-low-energy ICF wall system — internally designated Type 35 — at its own production facility in Hebei Province, China, with export support from its Hangzhou office.

It is the thickest and highest-insulation product in Sunforest's ICF range, purpose-built for builders and distributors in North America, Europe, the Middle East, Australia, and East Asia working on passive-house, ultra-low-energy, or extreme-climate projects where standard 250mm/280mm ICF thickness isn't enough.

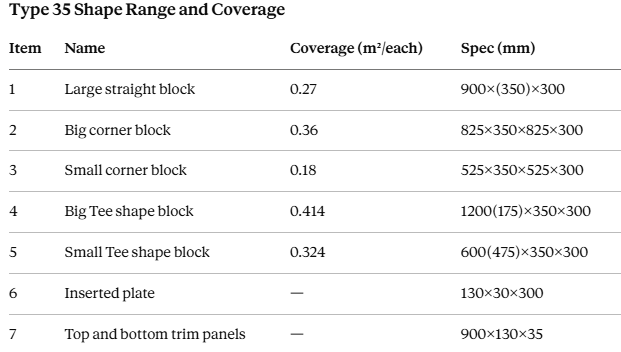

This article covers the 350mm product line in full — panel construction, shape range and accessories, insulation performance and climate applications, and current shipping/container status, including Sunforest's in-development split version.

The 350mm Product Line: Type 35 Passive ICF

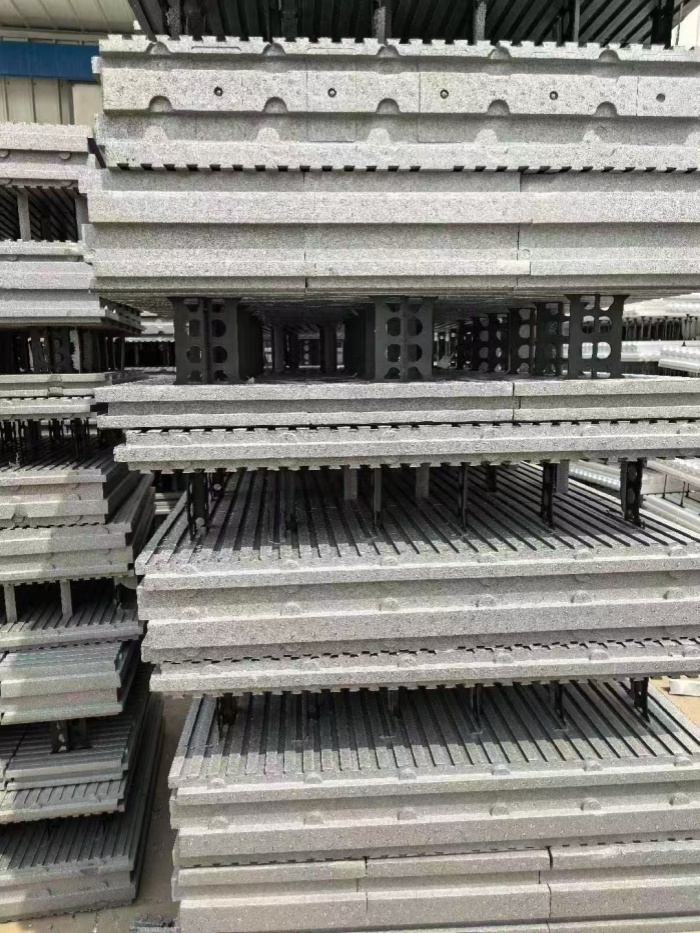

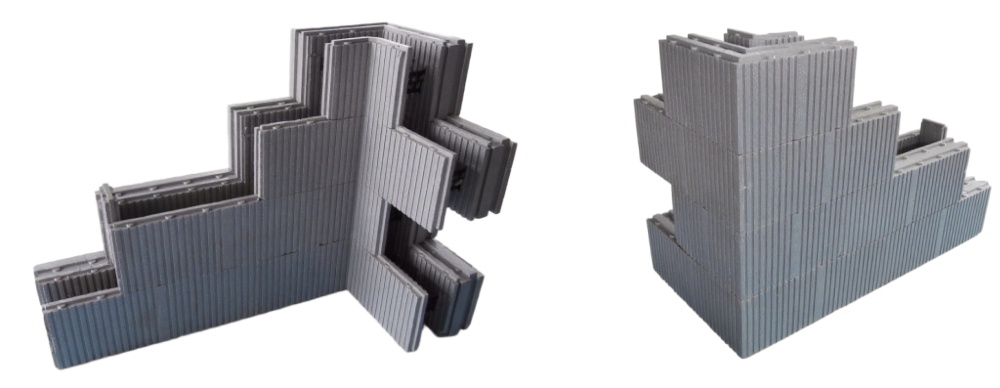

Type 35 is manufactured from graphite composite EPS (black/dark gray cavity material) in a dedicated panel construction, not simply a thicker version of Sunforest's standard 250mm/280mm blocks:

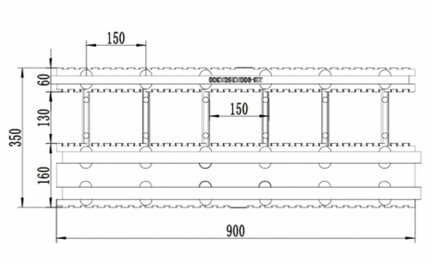

Overall panel construction — 350mm total:

• Outer EPS panel: 160mm

• Concrete core: 130mm

• Inner EPS panel: 60mm

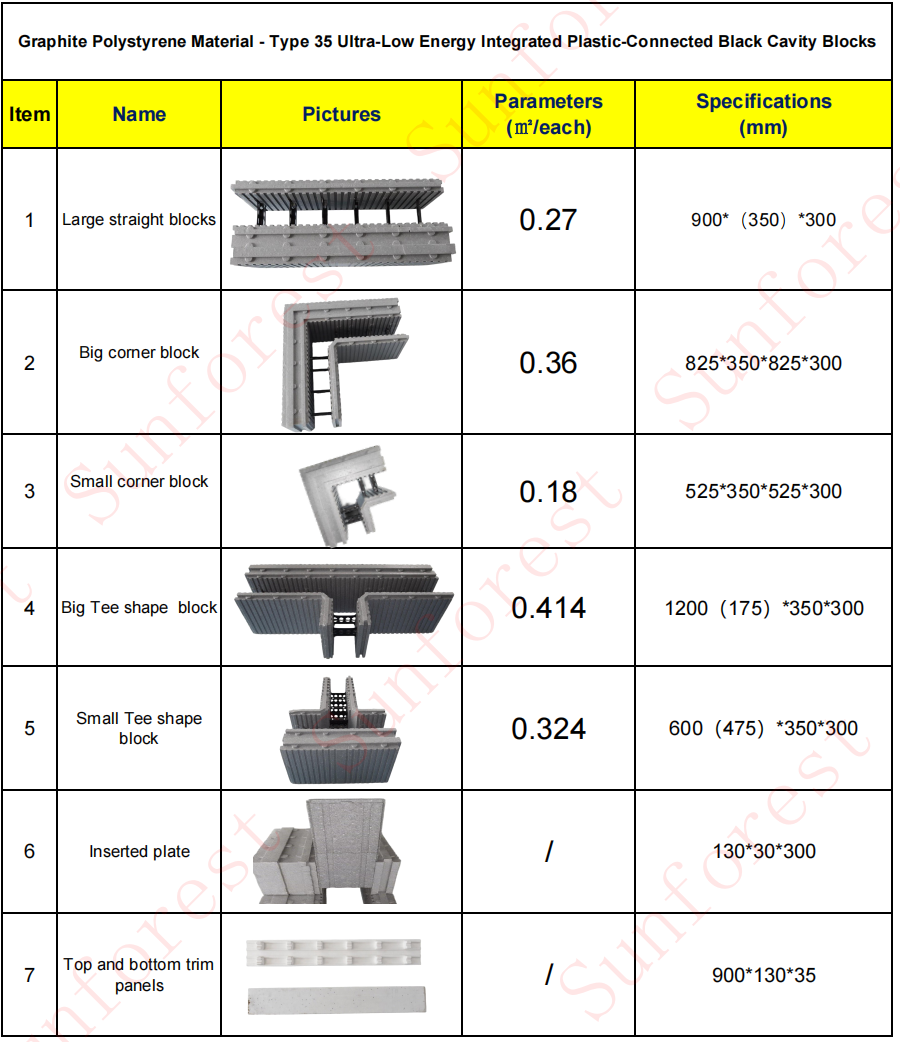

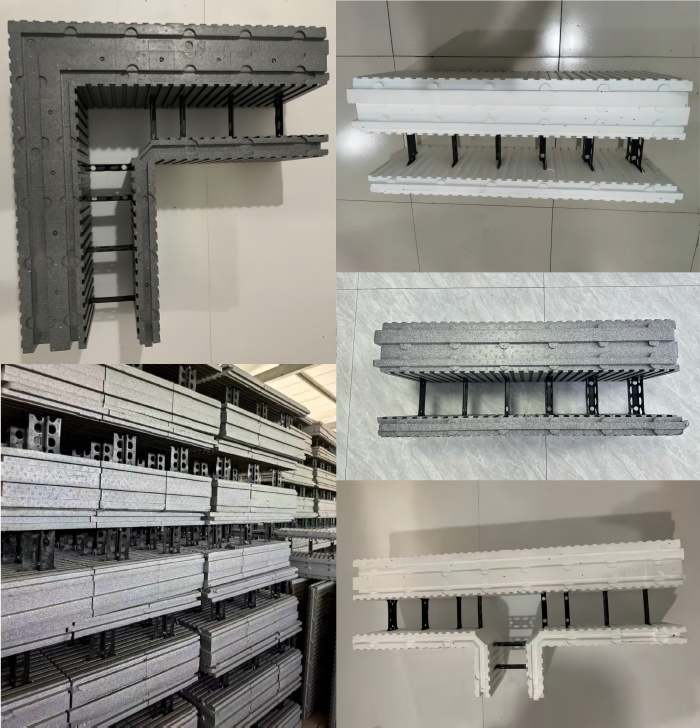

Dedicated 350mm Accessories

Because Type 35 is engineered as a distinct passive-performance system, it ships with its own matched accessories rather than reused standard-line parts:

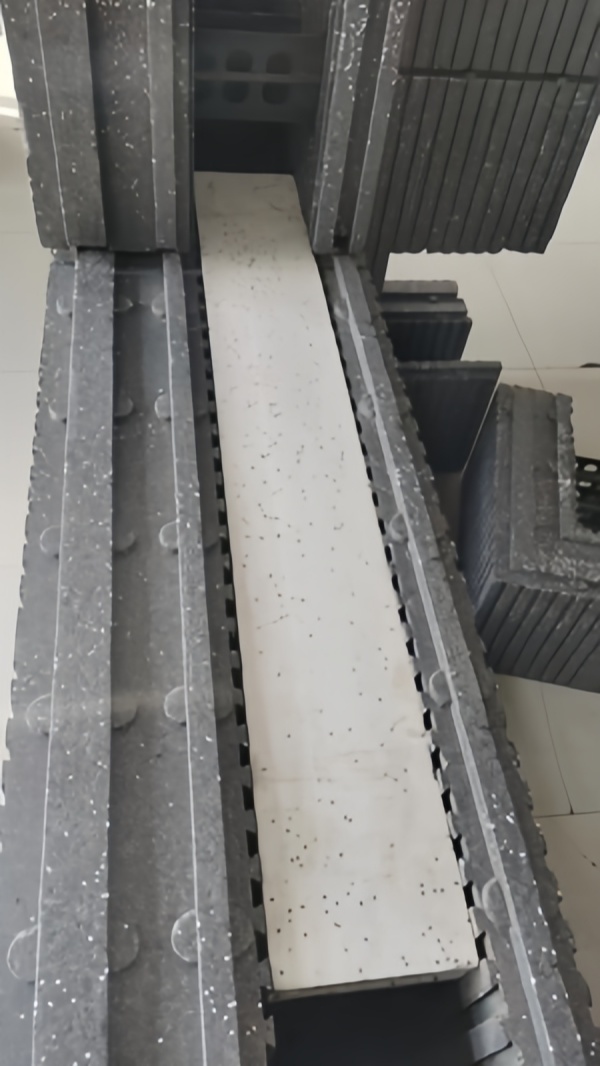

• 350mm window & door sill cover — a door/window opening top-and-bottom sealing block (900mm × 130mm), designed specifically for the 350-type exterior wall block to isolate concrete at door and window openings, with an internal reinforcement beam slot.

• 350mm passive roof panel — "Passive Ultra-Insulated Roof Panel with Built-in C-Shaped Steel Support," designed for internal insulation within 350-type ICF roof structures. Standard length 5.8 meters, field-cuttable to size, with embedded double C-shaped steel reinforcement that facilitates concrete pouring while delivering both thermal and acoustic insulation — no additional temporary support structure is required during the roof concrete pour.

Why 350mm: Insulation Performance and Real-World Climate Applications

Type 35's thicker EPS panels (160mm + 60mm, versus 55mm + 55mm on the standard 280mm line) combined with its graphite composite EPS material give it the highest thermal resistance in Sunforest's ICF range. Graphite particles distributed through the EPS cell structure absorb and scatter infrared radiation moving through the material, reducing the radiative component of heat transfer and lowering thermal conductivity compared to the same thickness of regular white EPS — an established approach used broadly across the EPS insulation industry. Combined with the added panel thickness itself, this is what makes Type 35 Sunforest's dedicated passive-house-oriented product, rather than simply "the 280mm line, thicker."

Hot-Climate / High-Cooling-Load Regions

Western Europe's 2026 summer was, by EU climate-monitor data, its hottest June–July period on record, with repeated heatwaves pushing temperatures past 40°C across the UK, France, Spain, Germany, and Ireland. In markets facing this kind of sustained cooling-load pressure — Southern and Western Europe, the Middle East and Gulf region, and hot-summer parts of Australia and the United States — Type 35's lower wall-assembly conductivity directly reduces the cooling load a building's HVAC system has to work against.

Cold-Climate / High-Heating-Load Regions

The same physics work in reverse for the Nordics, Canada, and the northern United States, where winter heating load drives both energy cost and, in many jurisdictions, building-code insulation minimums. A thicker, lower-conductivity wall assembly retains interior heat more effectively across long, cold winters — the core reason passive-house-oriented ICF products like Type 35 are specified in these markets.

A Note on Exterior Finish Color (Separate From the ICF Core)

It's worth distinguishing two effects that both come up in "insulation and cold climates" discussions, because only one is a property of the block itself. Type 35's graphite EPS core lowers heat transfer through the wall regardless of what the exterior finish looks like — that's a property of the material inside the wall. Separately, a darker exterior finish (dark render, stucco, or cladding) absorbs more solar radiation than a light-colored one, giving a modest passive solar-gain benefit on sun-facing elevations in cold climates — a general building-science effect tied to the outward-facing finish, not to the graphite content sealed inside the panel. The two are complementary, not the same mechanism, and Sunforest keeps them distinct so specifiers can evaluate each on its own merits.

Shipping Status: One-Piece Today, Split Version in Development

This is the most important operational detail for buyers planning container logistics around Type 35, and Sunforest is direct about it:

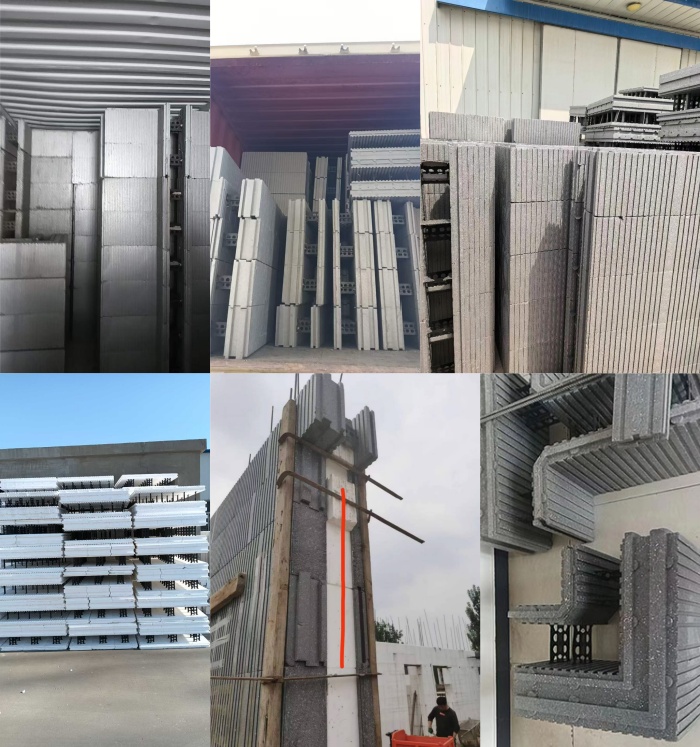

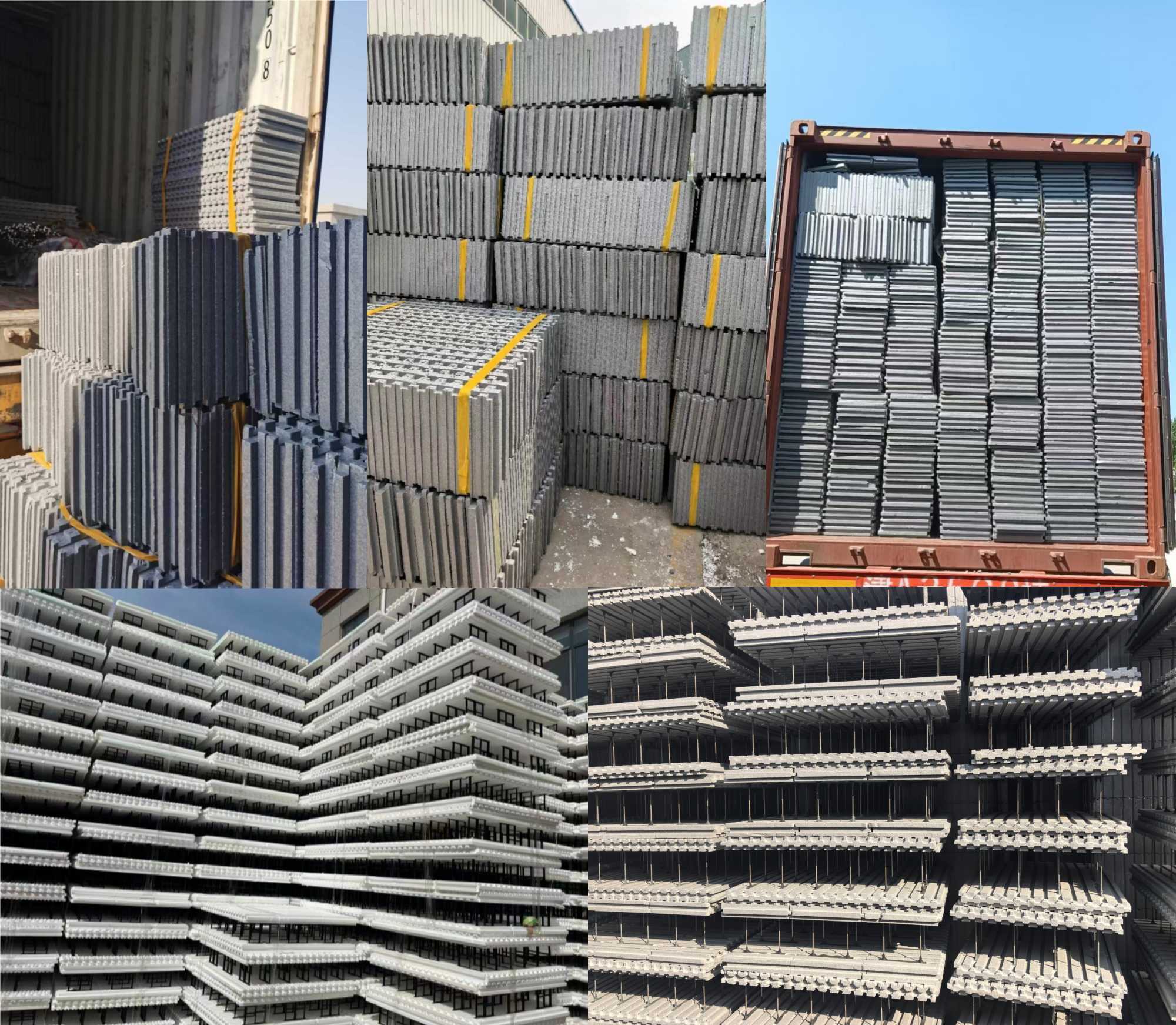

Current status — one-piece, integrated module. Type 35 is currently manufactured and shipped as a one-piece integrated module that cannot be disassembled for transport. Because of its larger cross-section, container utilization is lower than Sunforest's split 250mm/280mm lines: a standard 40ft container currently holds approximately 190 m² of straight Type 35 modules.

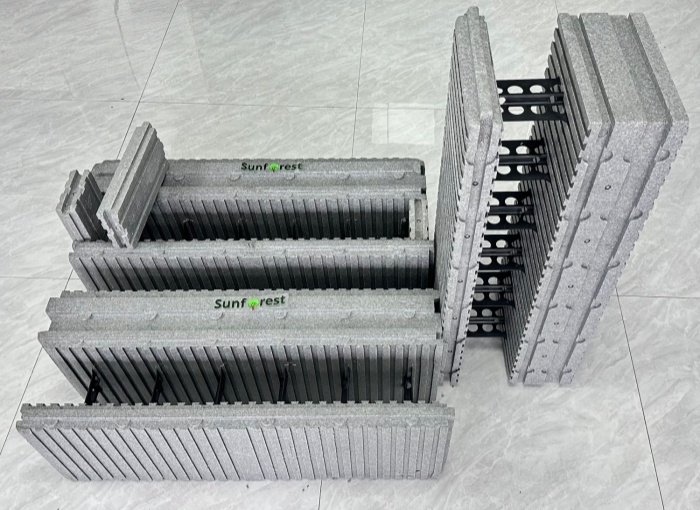

In development — split-type 350mm. Sunforest is actively developing a split-type version of the 350mm line, applying the same assembled-panel, separate-EPS-panel-plus-connector logic used in the 250mm/280mm split lines (see Sunforest's Split ICF Wall System product page for how that design works). The target for the split 350mm version is approximately 300–350 m² per 40ft container — roughly 1.6–1.8× today's one-piece loading figure — with an expected launch as early as this winter, pending final development and testing.

For buyers currently planning 350mm orders, this means: today's freight cost per square meter reflects the one-piece format (190 m²/container); once the split version launches, container-loading economics for 350mm are expected to improve substantially, closer to Sunforest's standard split-line efficiency. Buyers with flexible timelines may want to confirm current release status with Sunforest's export team before finalizing 350mm freight budgeting.

Why Source 350mm Passive ICF From Sunforest

• Dedicated passive-performance engineering — Type 35 is a distinct panel construction with its own matched accessories (sill cover, C-shaped-steel roof panel), not a generic thicker block.

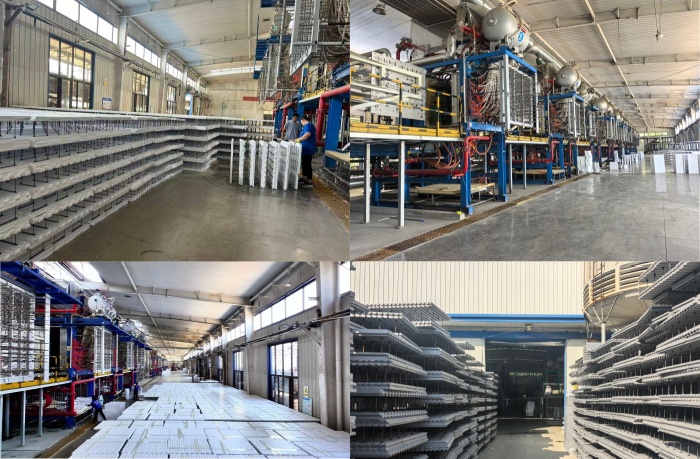

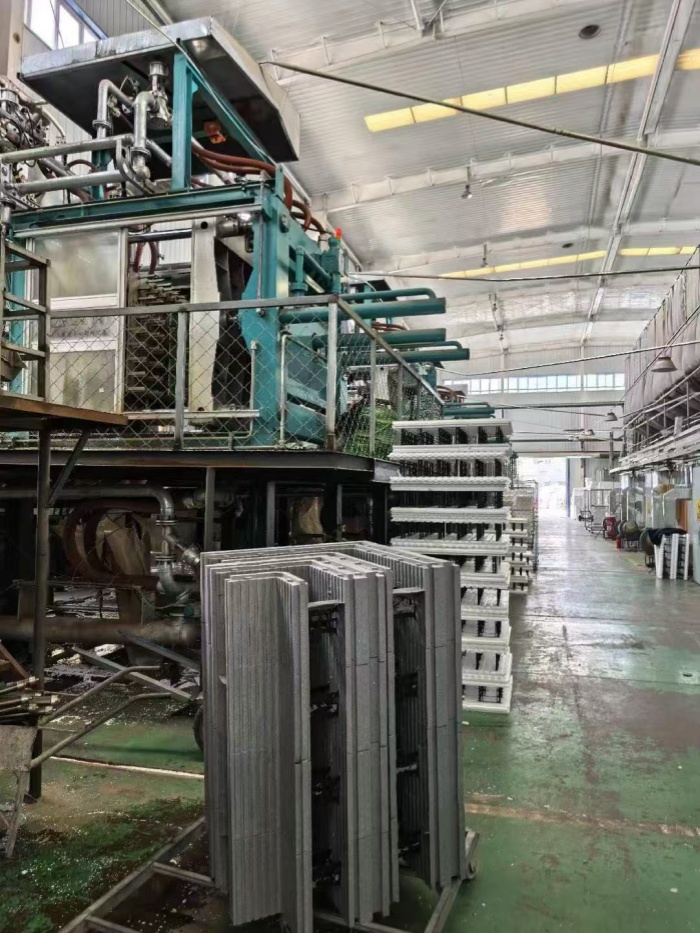

• In-house material control — Sunforest produces the graphite composite EPS itself, so material formulation and panel construction are controlled at the factory across every order.

• Full wall system from one supplier — Sunforest also manufactures the Q235 steel ICF bracing used to align and pour the wall, with surface-treatment options (hot-dip galvanizing, powder coating) matched to the same climate the 350mm line is specified for.

• Transparent logistics planning — Sunforest communicates current one-piece container-loading figures and split-version development status directly, so buyers can plan freight budgets around real, current data rather than assumptions.

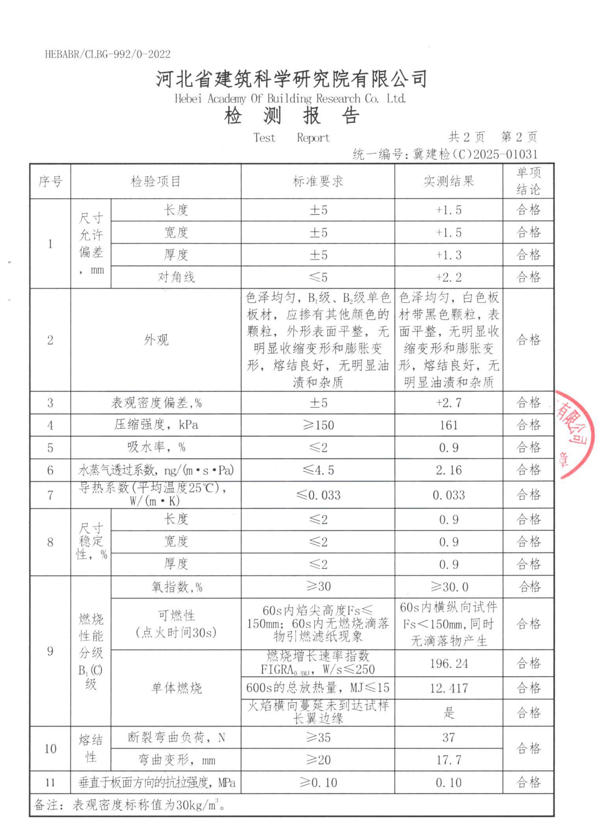

• Independently verified base material — CMA-certified third-party test data (Hebei Academy of Building Research, report No. 冀建检(C)2025-01031) is on file for Sunforest's EPS product line, covering compressive strength, thermal conductivity, water absorption, and fire classification.

Frequently Asked Questions

What is the 350mm ICF line, and how is it different from Sunforest's 280mm line?The 350mm line (Type 35) is Sunforest's dedicated passive/ultra-low-energy ICF product — a distinct panel construction (160mm outer EPS panel + 130mm concrete core + 60mm inner EPS panel) using graphite composite EPS, engineered for higher insulation performance than the standard 250mm/280mm lines, with its own matched window/door and roof accessories.

Is the 350mm ICF line shipped as separate panels or as one piece?Currently as one piece. Type 35 is manufactured and shipped as a one-piece integrated module that cannot be disassembled for transport, which limits container utilization compared to Sunforest's split 250mm/280mm lines.

How much 350mm ICF fits in a 40ft container?At present, a standard 40ft container holds approximately 190 m² of straight Type 35 modules in one-piece format.

Is Sunforest developing a split version of the 350mm line?Yes. Sunforest is actively developing a split-type 350mm ICF system, applying the same assembled-panel connector design used in its 250mm/280mm split lines, targeting approximately 300–350 m² per 40ft container — with an expected launch as early as this winter, pending final development and testing. Buyers should confirm current release status with Sunforest's export team before finalizing freight planning.

Why does 350mm ICF perform better in extreme climates than thinner ICF lines?Its thicker EPS panels and graphite composite material combine to lower the wall assembly's overall thermal conductivity more than Sunforest's standard 250mm/280mm lines, reducing heat transfer in both directions — limiting cooling load in hot-summer climates and heat loss in cold-winter climates.

Does exterior wall color affect the 350mm ICF's insulation performance?The graphite EPS core's insulation benefit works regardless of exterior finish color, once the wall is complete. A darker exterior finish (render, stucco, cladding) is a separate, complementary factor — it can add a modest passive solar-gain benefit in cold, sun-exposed climates, but that effect comes from the outward-facing finish, not the graphite content sealed inside the panel.

What accessories are available specifically for the 350mm line?A matching window/door sill cover (900mm × 130mm, with internal reinforcement beam slot) designed for 350-type exterior walls, and a passive roof panel with built-in double C-shaped steel support (standard 5.8m length, field-cuttable), which requires no additional temporary support structure during the roof concrete pour.

Is Sunforest a manufacturer or a trading company?Sunforest (Hangzhou Sunforest Constech Co., Ltd) manufactures its ICF blocks — including the 350mm passive line — and its ICF bracing system at its own facility in Hebei Province, China, with an export office in Hangzhou. Panel construction, material formulation, and the in-development split-type 350mm design are all engineered in-house.

Sunforest ICF & ICF Bracing is manufactured by Hangzhou Sunforest Constech Co., Ltd. For split-line container loading calculations, thickness recommendations, or material spec sheets, contact the Sunforest export team.
