Sunforest Stackable ICF Bracing Storage Crate

An ICF bracing system is a reusable construction asset.

For contractors, distributors and especially ICF bracing rental companies, purchasing the bracing is only the first step.

After that comes another set of questions:

How do you transport it?

How do you store it?

How do you know whether all components have been returned?

How do you prevent pins, brackets and other components from being lost?

How do you efficiently move dozens or hundreds of bracing sets between warehouse, truck and jobsite?

Sunforest developed its Stackable ICF Bracing Storage Crate specifically to solve these problems.

It is not simply a steel shipping frame.

It is an engineered:

ICF Bracing Storage + Transportation + Inventory Management System

designed specifically around the dimensions and individual components of the Sunforest ICF Bracing System.

Technical Specifications

The standard Sunforest storage crate is designed to accommodate 24 complete sets of 10ft ICF bracing.

24 Complete ICF Bracing Sets in One Crate

Each standard crate is designed for:

24 complete sets of 10ft ICF bracing

This is an important distinction.

We did not simply design a large steel box and place the bracing inside it.

The internal layout was developed around the individual components of our ICF bracing system.

Each major component has its own dedicated storage position.

For example:

• Strongbacks

• Adjustable legs

• Platform brackets

• Other bracing components

are organized into their corresponding positions.

The manual describes this as Visual Inventory Management: if a dedicated position is empty, the operator can immediately see that a component is missing.

Why Did Sunforest Develop a Dedicated ICF Bracing Storage Crate?

A standard ICF bracing system contains multiple reusable steel components.

When dozens or hundreds of bracing sets are used repeatedly, loose storage creates several practical problems:

Bracing components become mixed together.

Pins and smaller components can be lost.

Workers spend time searching for parts.

Components can collide or bend during transportation.

Rental companies need to recount equipment after every return.

Warehouses require more organized storage.

Sunforest therefore approached the problem from an engineering and jobsite-management perspective.

Instead of asking:

"How can we pack the bracing?"

we asked:

"How can contractors manage hundreds of reusable ICF bracing components more efficiently throughout their entire service life?"

The Stackable Storage Crate is our answer.

Benefit 1: Dedicated Position for Every Component

One of the most important features is the dedicated-slot design.

Every major bracing component has its own position inside the crate.

This provides an immediate visual inventory system.

For a contractor, warehouse manager or rental company:

Full Slot = Component Present

Empty Slot = Component Missing

There is no need to unload everything and manually count loose components one by one.

Sunforest's manual specifically identifies this as an advantage for rental operations: returned equipment can be checked quickly because missing parts can be identified by empty storage positions.

Benefit 2: Especially Valuable for ICF Bracing Rental Companies

The storage crate becomes particularly valuable when ICF bracing is used as rental equipment.

Consider a rental company with:

120 / 240 / 480+ ICF bracing sets

Every rental cycle involves:

Warehouse → Truck → Jobsite → Use → Return → Inspection → Storage → Next Rental

Without an organized storage system, every cycle creates additional management work.

Workers may need to count:

• Strongbacks

• Adjustable legs

• Platform brackets

• Base plates

• Safety components

• Pins

A missing small component can prevent an otherwise complete bracing set from being used.

With the Sunforest storage system, checking equipment becomes much more visual.

This helps rental companies reduce:

Counting Time + Missing Components + Replacement Purchases + Inventory Management Work

Benefit 3: Faster Jobsite Deployment

Time spent searching for equipment is non-productive labor.

With organized storage, workers can quickly identify and access the required components when the crate arrives at the construction site.

The objective is simple:

Unload → Identify → Deploy → Install

rather than:

Unload → Sort → Search → Count → Find Missing Parts → Install

For builders working on multiple ICF projects every year, these small efficiency improvements can accumulate over repeated construction cycles.

Benefit 4: Protect Your ICF Bracing Investment

ICF bracing is reusable construction equipment.

How it is transported and stored directly affects its condition.

When steel components are simply thrown into a truck or stacked loosely:

Metal hits metal.

This can cause:

• Surface coating damage

• Scratches

• Bending

• Component deformation

• Premature corrosion

• More maintenance work

The dedicated positions inside the Sunforest crate help keep components separated and organized.

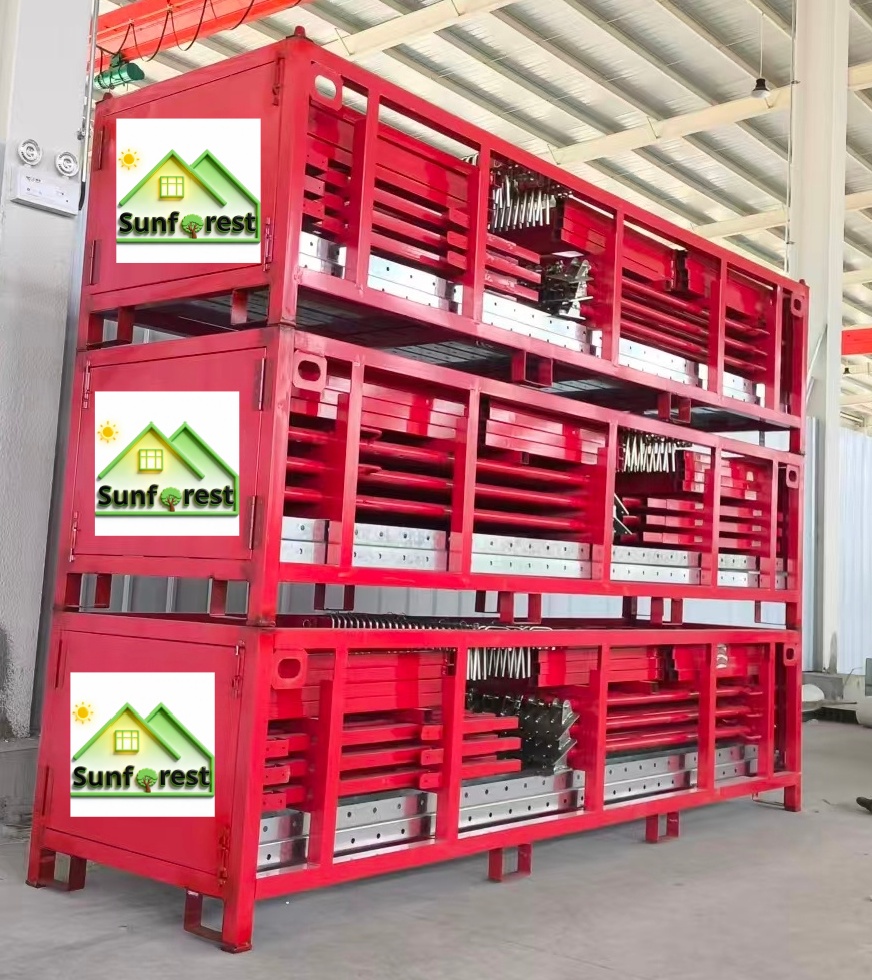

Benefit 5: Stackable Design Saves Storage Space

The word Stackable is an important part of the product.

These crates are designed so multiple loaded crates can be organized vertically rather than occupying excessive warehouse or jobsite floor space.

This is useful for:

ICF Contractors

Store reusable bracing between projects.

ICF Distributors

Maintain organized inventory.

Rental Companies

Manage hundreds of bracing sets by crate rather than individual components.

Construction Companies

Move complete groups of bracing between different jobsites.

The storage concept changes from:

Hundreds of loose steel components

to:

Standardized bracing units organized by crate.

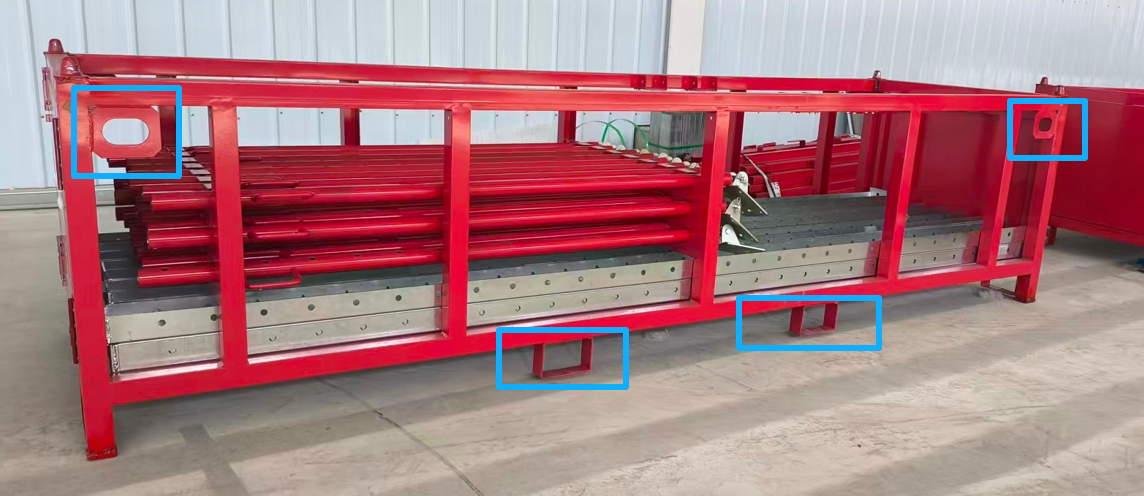

Benefit 6: Designed for Forklift Handling

Construction equipment needs to move efficiently.

The Sunforest Storage Crate therefore incorporates integrated side forklift pockets.

A forklift can move an entire crate instead of workers manually handling individual bracing components.

This makes it easier to move equipment between:

Warehouse → Truck → Jobsite → Storage Area

The forklift pockets are integrated into the crate structure as part of the handling design.

Benefit 7: Crane Lifting Capability

Forklifts are not available in every position on a construction site.

For this reason, the crate also incorporates heavy-duty top-mounted lifting points / eye bolts for crane handling.

This provides two primary handling methods:

Forklift Handling + Crane Lifting

The combination makes the storage system more practical for warehouses, construction sites and equipment-rental operations.

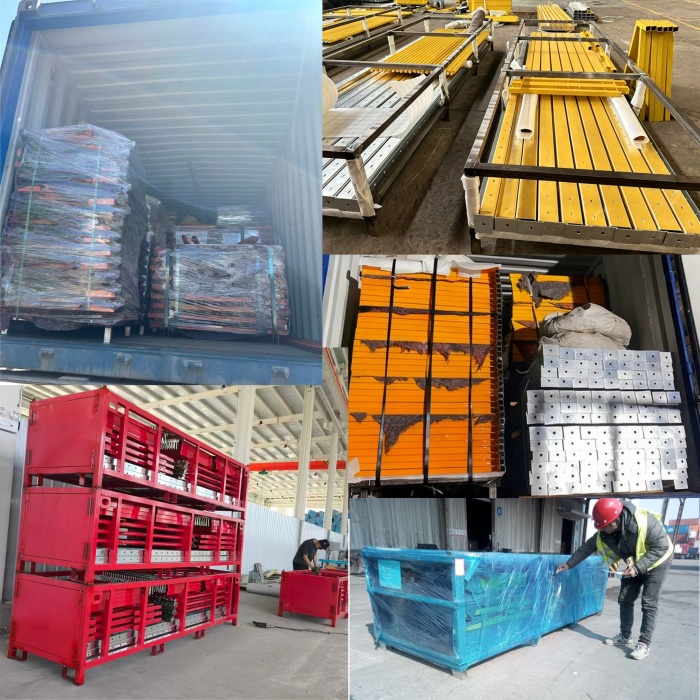

Optimized for Container Transportation

International shipping efficiency was also considered during the development of the crate.

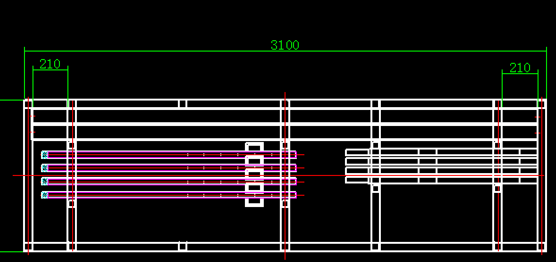

The standard crate measures only:

3100 × 900 × 800 mm

while carrying:

24 complete sets of 10ft ICF bracing.

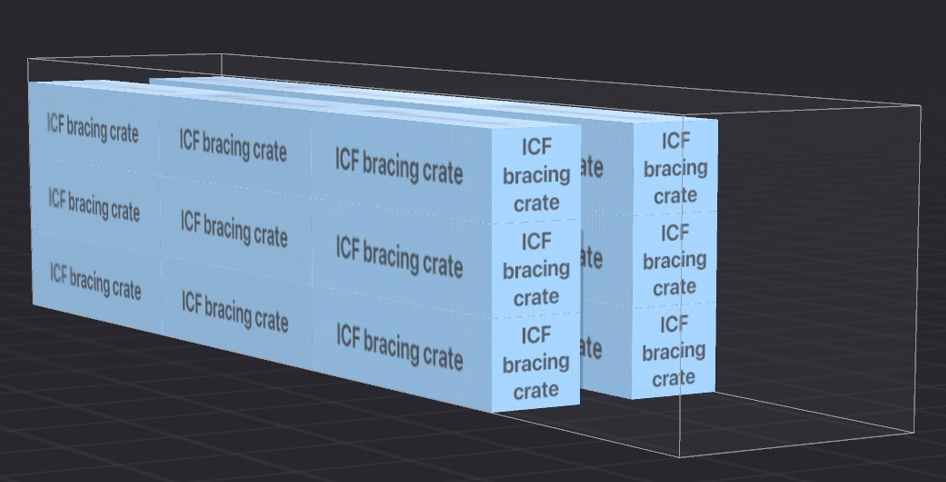

The compact, stackable configuration allows the crates to be arranged efficiently inside shipping containers.

For Sunforest's current loading configuration, the crates can be stacked in three levels, and a 40HC can accommodate up to 18 standard storage crates under the applicable loading arrangement.

That represents:

18 crates × 24 sets = up to 432 complete ICF bracing sets

in one 40HC configuration.

Actual loading should always be reconfirmed according to bracing height, crate specification, order composition, container internal dimensions and weight limits before shipment.

For international ICF bracing buyers, this is important because transportation cost should not be evaluated only by the price of one crate or one bracing set.

The more meaningful figure is:

Landed logistics cost per complete bracing set.

5 Crates = 120 Complete ICF Bracing Sets

The standard MOQ for the Sunforest Stackable Storage Crate is:

MOQ: 5 Crates

Since each standard crate accommodates 24 complete bracing sets:

5 × 24 = 120 complete ICF bracing sets

This makes the product particularly suitable for customers purchasing 120 sets or more of ICF bracing.

For smaller quantities, Sunforest can also discuss alternative packaging solutions.

Our ICF bracing manual lists several packaging approaches, including separate/bulk packing, simple steel storage

Not Just a Crate — Designed by Our Engineering Team

One of Sunforest's key differences is our engineering capability.

We do not simply manufacture a fixed-size steel crate.

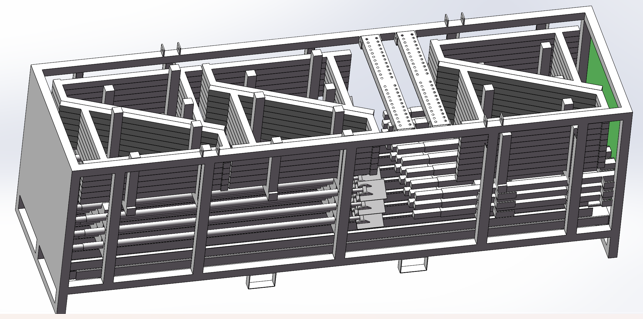

For customized projects, our engineers can prepare:

CAD Drawings

and

3D Drawings

before production.

This allows the customer and Sunforest engineering team to confirm:

• Overall dimensions

• Internal layout

• Bracing positions

• Reinforcement details

• Forklift positions

• Lifting points

• Branding positions

• Structural modifications

• Special project requirements

Sunforest's technical documentation specifically supports engineered CAD/3D drawings for customized structural designs.

Custom Dimensions and Structural Details

Different customers use bracing differently.

A rental company may prioritize fast inventory checking.

A contractor may prioritize jobsite transportation.

A distributor may prioritize container utilization and branding.

Therefore, Sunforest can modify:

Dimensions | Internal Layout | Structural Details | Reinforcement | Component Positions

according to the customer's requirements.

The objective is not to force every customer to use exactly the same crate.

The objective is to create a storage system around the customer's actual ICF bracing operation.

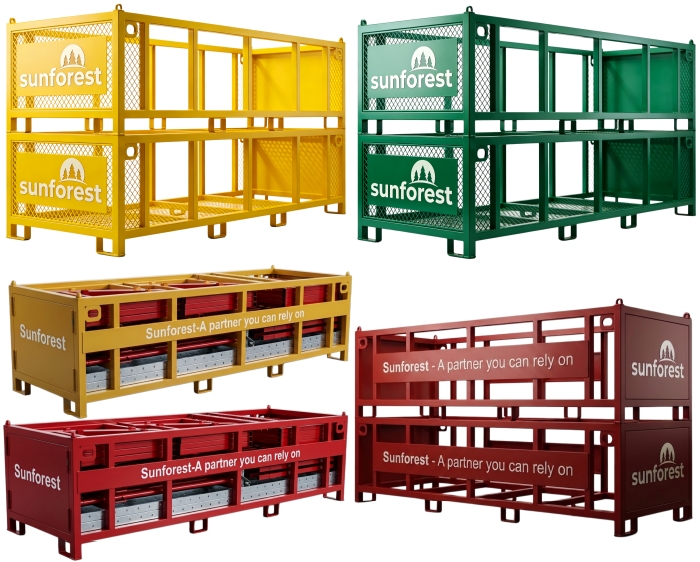

Custom Colors

The storage crate can also become part of the customer's brand identity.

Sunforest supports customized colors, including RAL color matching, according to customer branding requirements.

For example, an ICF distributor or rental company can order:

Bracing + Storage Crates

in the same corporate color.

This creates a more consistent and professional equipment system on:

• Jobsites

• Trucks

• Warehouses

• Rental yards

• Customer demonstrations

• Trade shows

Custom Logo, Company Name and Slogan

The large surfaces of the storage crate also provide useful branding space.

Sunforest can customize different positions with:

Company Logo

Company Name

Brand Name

Slogan

Product Information

Identification Numbers

Depending on the design, branding can include laser-cut or welded logo plates, while other branding details can be discussed during engineering confirmation. The standard customization capability for logo plates and colors is documented in the Sunforest manual.

This is particularly valuable for:

ICF Distributors

Create a private-label equipment line.

ICF Rental Companies

Make rental assets immediately identifiable.

Contractors

Improve professional jobsite presentation.

Regional Dealers

Promote their brand every time the equipment appears on a construction site.

The crate is therefore not only storage equipment.

It can also become a mobile branding asset.

Surface Treatment Options

Sunforest offers different surface-treatment options for the storage crate, including:

Industrial Painting

and

Electrostatic Powder Coating

These finishes help protect the Q235 steel structure against rust and corrosion during repeated construction-site use.

The appropriate finish can be selected according to:

• Budget

• Climate

• Frequency of use

• Storage environment

• Brand color requirements

Built from Q235 Structural Steel

The standard storage crate is fully welded from Q235 structural steel.

This is important because a fully loaded standard crate has a gross weight of approximately:

706 kg / 1,556 lbs

including approximately:

636 kg / 1,402 lbs payload

plus:

70 kg / 154 lbs empty crate weight.

The crate therefore needs to function as real construction equipment rather than decorative packaging.

The manual specifies a fully welded Q235 construction designed for heavy-duty transport and demanding jobsite use.

Storage Crate + ICF Bracing as One Equipment System

Sunforest manufactures both:

ICF Bracing

and

Dedicated Stackable Storage Crates

This gives us an important engineering advantage.

We know the dimensions and operating requirements of:

• Strongback

• Adjustable leg

• Platform bracket

• Safety rail

• Base plate

• Pins and fasteners

The Sunforest ICF bracing system itself uses Q235 structural steel, with 2mm material specified for major components such as the strongback, platform brackets, adjustable legs and safety rails.

Because we understand both the bracing and the crate, the storage system can be designed around the actual equipment rather than treating the crate as generic packaging.

Designed for the Complete Equipment Life Cycle

The value of the storage crate becomes clearer when considering the complete life cycle of reusable ICF bracing:

Factory → Container Loading→International Transportation→Customer Warehouse→Truck Loading→Construction Site→ICF Wall Construction→Return to Warehouse→Inspection→Storage→Next Project

The same ICF bracing may repeat this cycle many times.

A professional storage system can therefore create value during every project, not only during the first shipment.

Especially Suitable for ICF Bracing Rental Businesses

For an ICF bracing rental company, the storage crate can become a standardized management unit.

Instead of saying:

"We have hundreds of loose bracing components."

the rental company can manage inventory as:

1 Crate = 24 Complete Bracing Sets

For example:

5 Crates = 120 Sets

10 Crates = 240 Sets

15 Crates = 360 Sets

18 Crates = 432 Sets

This makes inventory, warehouse organization, transportation planning and rental returns much easier to understand and manage.

Why Choose Sunforest Stackable ICF Bracing Storage Crates?

Sunforest is not simply purchasing a generic steel crate and reselling it with our bracing.

Our storage system is developed around the actual requirements of reusable ICF construction equipment.

Our capabilities include:

In-House Engineering Support

CAD and 3D drawings can be prepared for customized projects.

Customized Structure

Dimensions and structural details can be modified.

Custom Branding

Color, logo, company name and branding positions can be customized.

ICF Bracing Integration

The crate is developed around the actual components of our ICF bracing system.

International Shipping Experience

Container loading is considered during product and packaging development.

Multiple Packaging Options

Customers can choose between bulk/separate packing, simple steel frames or dedicated storage crates according to project requirements.

Who Should Use a Stackable ICF Bracing Storage Crate?

The product is particularly suitable for:

ICF Contractors — repeatedly moving bracing between construction sites.

ICF Bracing Rental Companies — requiring rapid equipment checkout and return inspection.

ICF Distributors — maintaining organized inventory and professional product presentation.

Professional Builders — managing reusable construction equipment over multiple projects.

Private-Label ICF Brands — requiring customized color, logo and equipment branding.

Sunforest's own product documentation identifies leasing companies, distributors, contractors and professional builders as the primary target users.

From ICF Bracing Manufacturer to Complete Equipment Solution Provider

Sunforest's product development does not stop at the ICF bracing itself.

We continuously consider:

How will the customer use it?

How will the customer transport it?

How will the customer store it?

How will a rental company manage it?

How can more equipment be shipped efficiently?

How can the customer's own brand be incorporated into the product?

That is why we developed the Stackable Storage Crate.

For Sunforest, the complete solution is:

ICF Bracing + Storage + Transportation + Inventory Management + Custom Branding

This is part of our positioning as a China ICF Bracing Manufacturer and Global ICF Construction Supply Partner.

Customization Process

For customers requiring customized storage crates, the cooperation process can be straightforward:

1. Tell Us Your Requirements

Bracing quantity, dimensions, intended use, color, logo and destination market.

2. Engineering Review

Our engineering team evaluates the structure and storage configuration.

3. CAD / 3D Drawing

Detailed drawings can be prepared for confirmation.

4. Branding Confirmation

Confirm color, logo, slogan and branding positions.

5. Production

The crate is manufactured according to the confirmed design.

6. Bracing Integration

The bracing and corresponding components are organized into their dedicated positions.

7. Container Loading

We arrange the crate configuration according to the order and container-loading plan.

This gives distributors and contractors much greater control over the final product than purchasing generic storage frames.

Frequently Asked Questions

What is the Sunforest ICF Bracing Storage Crate?

It is a dedicated steel storage, transportation and inventory-management system developed for Sunforest ICF bracing. It organizes individual bracing components into fixed positions and is designed for repeated jobsite and warehouse use.

How many ICF bracing sets fit in one crate?

One standard crate holds 24 complete sets of 10ft Sunforest ICF bracing.

What are the dimensions?

The standard crate measures approximately:

3100 × 900 × 800 mm

or:

122.0 × 35.4 × 31.5 inches.

How much does the crate weigh?

The empty crate weighs approximately 70 kg / 154 lbs.

With 24 complete bracing sets, the maximum payload is approximately 636 kg / 1,402 lbs, giving an approximate fully loaded gross weight of 706 kg / 1,556 lbs.

What is the MOQ?

The standard MOQ is:

5 crates = 120 complete ICF bracing sets.

Can the crates be stacked?

Yes. The storage system is designed for stackable storage and efficient warehouse, jobsite and transportation management.

How many crates can fit in a 40HC container?

Under Sunforest's current standard loading configuration, up to 18 crates can be arranged in one 40HC, corresponding to up to 432 complete 10ft ICF bracing sets. Final loading should be confirmed according to the exact order configuration before shipment.

Can the crate be moved by forklift?

Yes. Integrated side forklift pockets are incorporated into the design.

Can the crate be lifted by crane?

Yes. Heavy-duty top-mounted lifting points are provided for crane handling.

What material is used?

The standard crate is fully welded from Q235 structural steel.

Can I customize the crate color?

Yes. Sunforest supports custom colors, including RAL color matching for corporate branding.

Can we put our own logo on the storage crate?

Yes. Logo plates and branding can be customized. Company names, logos and other branding details can be incorporated according to the confirmed design.

Can Sunforest customize the dimensions?

Yes. Dimensions and structural details can be modified according to specific requirements. Sunforest can provide CAD/3D drawings for customized structural designs.

Is the storage crate suitable for ICF bracing rental companies?

Yes. This is one of its primary applications. Dedicated component positions allow rental companies to visually check returned equipment and identify missing components more efficiently.

Can I order the storage crate together with Sunforest ICF bracing?

Yes. The crate is specifically designed around the Sunforest ICF Bracing System, allowing the bracing, storage system, customization and export packaging to be coordinated together.

Sunforest Stackable ICF Bracing Storage Crate

24 Bracing Sets per Crate | Stackable | Q235 Steel | Forklift & Crane Handling | Custom Color | Custom Logo | CAD/3D Engineering | MOQ 5 Crates

For contractors, distributors and rental companies, ICF bracing should not become a pile of loose steel components after the first project.

It should remain an organized, reusable and manageable construction asset.

Sunforest combines:

ICF Bracing Manufacturing + Engineering + Storage Crate Design + OEM/ODM + Container Loading + Global Export

to provide a more complete solution for professional ICF construction companies.

Send us your required bracing quantity, bracing height, company color and logo. Our engineering team can develop the storage-crate configuration and drawings for your project or private-label ICF bracing system.
